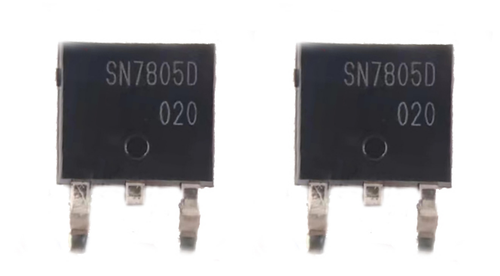

The SN7805D is a three-terminal positive regulator that delivers over 1A output current with an internal current limit, thermal shutdown, and safe area protection. The SN7805D voltage regulator is versatile and can be used with external components for adjustable voltage and current.

Features and benefits:

◈ Output current up to 1.0A

◈ Output voltage: 5V

◈ Built-in OVP, CLP circuit.

◈ Built-in TSD protection.

◈ Output transistor safe area protection.

◈ Super high level of ESD [built-in ESD protection unit] MM: 500V / HBM 5KV

Application:

◈ Consumer and personal electronics

◈ SMPS post regulator/DC-DC module

◈ High-efficiency linear power supply
