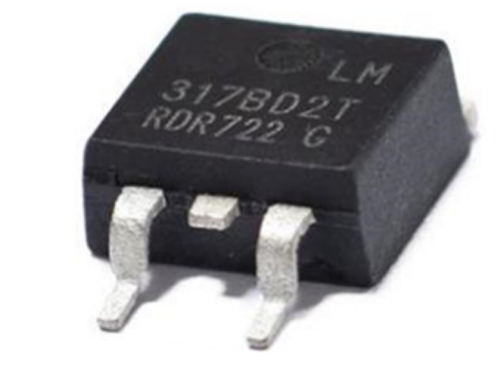

LM317BD2TR4G

LM317BD2TR4G is an adjustable 3-terminal output positive voltage regulator that can provide more than 1.5A of current within the output voltage range of 1.2 to 37V. The regulator is very easy to use, only two external resistors are required to set the output voltage. The device can also be used to make a programmable output regulator or by connecting a fixed resistor between the regulator and the output, the regulator can be used as a precision current regulator.

1. Internal thermal overload protection

2. The internal short-circuit current limit constant changes with temperature

3. Output transistor safety zone compensation

4. Floating operation for high voltage applications

5. No need to store many fixed voltages
