QFN16 test base

About this item
Price : $25
MOQ : 1 pcs
Weight : 0.03 KG
+ Add to cart
Product detail
Product description:

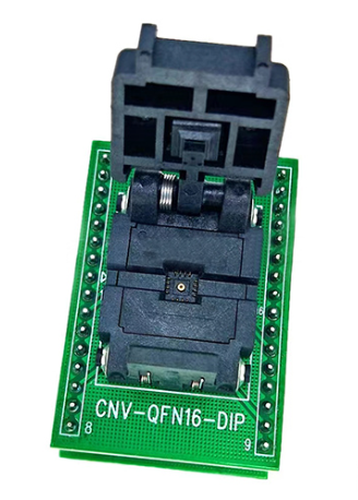

QFN16/QFN3X3-16L(0.5)/DFN16 IC chip burn-in test socket, programming socket, suitable for 0.5 mm pitch, 3*3mm size chip.



Product parameter:

Structure: with folding

Contacts: beryllium copper alloy.

Contact Plating: gold over nickel

Operation force: max. 2.0 kg.

Contact resistance: max. 50 MOhm.

Insulation resistance: 1000 Mohm min.

Current: max 2A

Operating temperature: -40 ~ + 150℃.

Operating life: 15,000 switching cycles


Use method:

Mount into an adapter.

Mount on a test board

Mount and make a test jig
